Important Information

  • Python scripts within this component are executed by the underlying virtual machine (VM) hosting Matillion ETL, and use the memory and compute of this VM. This component is not designed for large scale data processing scripts involving PySpark or other such compute-intensive packages.
  • To ensure that instance credentials access is managed correctly at all times, we always advise that customers limit scopes (permissions) where applicable.
  • We strongly recommend that any customers wishing to run boto3 do so using Python 3, not Jython.
  • We urge customers to avoid uninstalling Python or pip via the sudo yum remove python-pip command. This command may erase and remove Matillion ETL and disrupt your workflows.

Python Script

Run a Python script.

The script is executed in-process by an interpreter of the user's choice (Jython, Python2 or Python3). Any output written via print statements will appear as the task completion message, and so output should be brief.

While it is valid to handle exceptions within the script using try/except, any uncaught exceptions will cause the component to be marked as failed and its failure link to be followed.

You may import any modules from the Python Standard Library. Matillion ETL does not uninstall any customer-installed Python libraries. Matillion ETL runs as a Tomcat user and care must be taken to ensure this user has sufficient access to resources.

AWS Users Note: For Jython and Python2, the 'boto' and 'boto3' APIs are made available to enable interaction with the rest of AWS. The AWS credentials defined in Matillion ETL are automatically made available, therefore it is not recommended (or necessary) to put security keys in the script.

Warning

Calling sys.exit() from a Jython script will shut down Matillion ETL and is to be avoided. Jython scripts can be safely terminated by allowing the script to run to the end or by using quit().


Properties

Property Setting Description
Name String A human-readable name for the component.
Script Python Script The Python script to execute.
Interpreter Select Choice of interpreter between Jython, Python2, and Python3.
Timeout Integer (Python 2 and Python 3 only) The number of seconds to wait for script termination. After the set number of seconds has elapsed, the script is forcibly terminated.
The default is 300 seconds (5 minutes).
User Select Set the user type. For legacy Jobs, this property will not be available. The default setting is Restricted to prevent accidental or inexperienced coding errors that could damage the Matillion ETL instance.
Privileged: a privileged user will have access to credentials and Tomcat folders.
Restricted: restricted users do not have access to credentials stored in the instance, nor any Tomcat folders. When creating new Jobs, this is the default setting.

Strategy

Runs the python script, redirecting any output it produces into the task message.


Enabling the User Property

To enable the User property, follow these steps:

1. ssh into the Matillion ETL instance.

2. Create a .sh file and paste the following script into the .sh file:


#!/bin/bash useradd -r restricteduser usermod -a -G restricteduser tomcat cat <<HEREDOC > /etc/sudoers.d/matillion-sudo # User rules for tomcat Cmnd_Alias EMD = /sbin/service tomcat restart, /sbin/service tomcat8 restart, /bin/systemctl restart tomcat.service, /bin/systemctl restart tomcat8.service, /sbin/sv restart tomcat, /sbin/sv restart tomcat8, /bin/mkdir /usr/share/*, /usr/bin/yum -y check-update matillion-*, /usr/bin/yum -y update matillion-*, /bin/touch /usr/share/*, /bin/chmod 755 /usr/share/*, /bin/chown tomcat\\:tomcat /usr/share/emerald/oom, /bin/chown tomcat\\:tomcat /usr/share/emerald/oom/*, /usr/sbin/logrotate --force /etc/logrotate.d/tomcat8, /usr/sbin/logrotate --force /etc/logrotate.d/tomcat, /usr/bin/su restricteduser -c /bin/bash /tmp/interpreter-input-*.tmp, /usr/bin/su restricteduser -c /usr/bin/python /tmp/interpreter-input-*.tmp, /usr/bin/su restricteduser -c /usr/bin/python3 /tmp/interpreter-input-*.tmp tomcat ALL=(ALL) NOPASSWD:EMD HEREDOC

3. Save and close this .sh file and then run the following command:

chmod +x {FILE_NAME}

4. The above command makes the .sh file executable. Once you have done that, run the following command:

./{FILE_NAME}

5. The newly created .sh file should run successfully.

6. In Matillion ETL, click Admin and then click Restart Server. Once the server restarts, the User property should be selectable on the Python Script component.


Restricting Component Availability

You can, if required, configure the Python Script component to be unavailable on your Matillion ETL instance. To do this, follow these steps:

1. SSH into the instance.

2. Open the file emerald.properties as a root user (sudo).

3. Locate MTLN_ALLOW_PYTHON_COMPONENTS and set the value to false.

4. Save and close the file and restart the server.

Please Note

By default, MTLN_ALLOW_PYTHON_COMPONENTS is set to true.


Variables

When run, the Python Script component creates a set of new variables of the same name, type, and default value as those listed in the Environment Variables list. Thus, Environment Variables can be used within the script (the syntax ${variable} is not required, you may simply use variable.

Since the Python script already contains Python counterparts of the Environment Variables, users should be careful to not use those same names for their own variables, especially when of a different type.

Please Note

The Python script variables will disappear after the Python script ends. If you need to push values back to Environment Variables to use in other components later in the job, use the special 'context' object, like so:

context.updateVariable("variable", "new value")

Both arguments are strings that should parse as the target variable type.


Database Access (Jython Only)

To access the database defined in the current environment, use the 'cursor' object provided.

cursor = context.cursor()

The cursor object is described in the Python DB-API V2 and implemented via the "zxJDBC" package in Matillion ETL. The connection is made automatically for you using the current environment defined in Matillion ETL, and this connection will be closed automatically after the script terminates.

This feature is provided for convenience, and is not designed for retrieving large amounts of data. After executing a query, you should iterate the cursor to retrieve the results one row at a time, and avoid using fetchall() which may lead to out-of-memory issues.

If you execute database updates, you should not try to commit or rollback. Transactions are handled for you, either automatically (Auto-commit mode) or manually using the Begin/Commit/Rollback components. This is a change compared to previous versions, so older scripts may still have commit() calls in them—these should be removed.


Grid Variables

Similar to Variables, Grid Variables can also be accessed through the Python Script component. Details on using Grid Variables in this manner can be found in the Grid Variables documentation.



Additional Modules (Jython & Python2 Only)

For Python3 additional modules, click here.

Additional python modules may be installed by running the pip command. Log into the instance with SSH and run the command as root:

sudo pip install modulename

As well as pip, you may also upload your own modules to the instance. In that case, you must include the location of the modules in the python search path, and this location must be readable by the 'tomcat' user. The general format is as below:

import sys
sys.path.append('/path/to/directory/with/python/modules/and/packages')

Python directories can also be found with the following python code:

from distutils.sysconfig import get_python_lib;
print(get_python_lib())

For most users, the directories should be:

  • Jython: /usr/share/emerald/WEB-INF/lib/Lib/site-packages
  • Python2: /usr/lib/python2.7/dist-packages
  • Python3: /usr/lib/python3.6/dist-packages

For example:

import sys
sys.path.append('/usr/lib/python2.7/dist-packages')
import requests

Note: Regardless of whether a module is installed with pip or manually, it must not rely on external C modules in order to run successfully on the embedded Jython interpreter. However, such scripts should work on Python2 and Python3.


Additional Modules (Python3 Only)

Additional Python3 modules may be installed by running the pip command.

To do this, log into the instance via SSH and run the command as root to begin the installation:

Python3.6

For versions 1.40 and newer of Matillion ETL.

sudo yum install python36-pip

Then to install the modules, for example, boto3:

sudo pip-3.6 install boto3

Python3.4

For versions 1.39 and older of Matillion ETL.

sudo yum install python34-pip

Then to install the modules, for example, boto3:

sudo pip-3.4 install boto3

If you are experiencing issues installing Python libraries and encountering an error such as ModuleNotFoundError: No module named '<moduleName>', please follow the steps below:

1. Display the pip version.

sudo python3 -m pip --version

2. Install/upgrade pip.

sudo python3 -m pip install --upgrade pip

3. Install the requests library.

sudo python3 -m pip install requests

Once these commands have been run, running the command import requests within the Python Script component should resolve the ModuleNotFound error.


Task Cancellation (Jython Only)

Scripts are never forcibly killed. If you want a long-running script to respond to task cancellation, the script must check for cancellation and act accordingly, ensuring any resources are cleaned up. Cancellation can be checked by querying the context:

context.isCancelled()
Since the cancellation is being handled within the script, the component will still end successfully, since no uncaught exception has been thrown. IN order for cancellation to also mark the script task as a failure, raise an exception. For example:
if context.isCancelled():
raise Exception("Script cancelled during loop")


Task Cancellation (Python2 and Python3 Only)

A Timeout property is made available in the component if set to Python2 or Python3. If a script runs longer than its timeout (in seconds) it is forcibly killed - similar to the BASH component.



Example 1

This example moves all the objects within an S3 bucket into another S3 bucket. You may wish to do this following an S3 Load, to ensure those same files are not loaded again by subsequent runs of this same job. The target bucket could also use Amazon Glacier to reduce the cost of storing the already loaded files.

import boto3
s3_resource = boto3.resource('s3')
new_bucket_name = "targetBucketName"
bucket_to_copy = "sourceBucketName"
s3bucket = s3_resource.Bucket(bucket_to_copy)
for obj in s3bucket.objects.all():
files = obj.key
copy_source = {'Bucket': bucket_to_copy,'Key': files}
s3_resource.meta.client.copy(copy_source, new_bucket_name, files)
print(files)

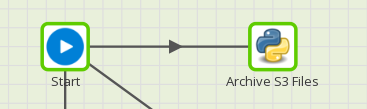

The Python script imports the "boto" module and uses it to move the files. In fact, the script copies the objects to the other bucket, and then removes the source object. A similar script could instead rename the objects and leave them within the same bucket. A list of available variables is given on the left of the window, and used in code written on the right. The script can be executed by clicking Run as though the component had been run on the Matillion UI. The output of the code is shown beneath after running.


Example 2

The example script below shows a database query which retrieves a single (aggregate) row of data, and stores the result into a Variable for use elsewhere in Matillion ETL.

cursor = context.cursor()
cursor.execute("select count(*) from flights")
result = cursor.fetchone()
print result
context.updateVariable("total_count", str(result[0]))
