Overview

AWS Identity and Access Management (IAM) roles enable your applications running on Amazon EC2 instance to use temporary security credentials. IAM roles for EC2 make it easier for your applications to make API requests securely from an instance because they do not require you to manage AWS security credentials that the applications use. Recently, AWS enabled to use temporary security credentials for your applications by attaching an IAM role to an existing EC2 instance by using the AWS Console.

When you use a role, you don't have to distribute long-term credentials (such as a user name and password or access keys) to an EC2 instance. Instead, the role supplies temporary permissions that applications can use when they make calls to other AWS resources. When you launch an EC2 instance, you specify an IAM role to associate with the instance. Applications that run on the instance can then use the role-supplied temporary credentials to sign API requests.



How Roles work for EC2 Instances

In the diagram below, an admin runs an application on an EC2 instance that requires access to the S3 bucket named "Images". An administrator creates the "MatillionRole" service role and attaches the role to the EC2 instance. The role includes a permissions policy that grants read-only access to the specified S3 bucket. It also includes a trust policy that allows the EC2 instance to assume the role and retrieve the temporary credentials. When the application runs on the instance, it can use the role's temporary credentials to access the "Image" bucket. The administrator doesn't have to grant the developer permission to access the images bucket, and the admin never has to share or manage credentials.

Overview IAM roles

Overview IAM roles

You can attach an IAM role to an existing EC2 instance from the EC2 console . You can also use the EC2 console to replace an IAM role attached to an existing instance. This guide will give you an overview on how roles works for EC2 instances, create IAM roles and attach an IAM role to an existing EC2 instance using EC2 console and AWS CLI.

Please Note

To create a role, you can use the AWS Management Console, the AWS CLI, the Tools for Windows PowerShell, or the IAM API.

For example, you can use IAM roles to grant permissions to applications running on your instances that need to use a bucket in Amazon S3. You can specify permissions for IAM roles by creating a policy in JSON format. These are similar to the policies that you create for IAM users. If you change a role, the change is propagated to all instances.

When creating IAM roles, associate least privilege IAM policies that restrict access to the specific API calls the application requires.

Warning

You cannot attach multiple IAM roles to a single instance, but you can attach a single IAM role to multiple instances.



Create an IAM role

You must create an IAM role before you can launch an instance with that role or attach it to an instance.

Please Note

Please skip this section if you want to assign an existing role.

To create an IAM role (IAM console)

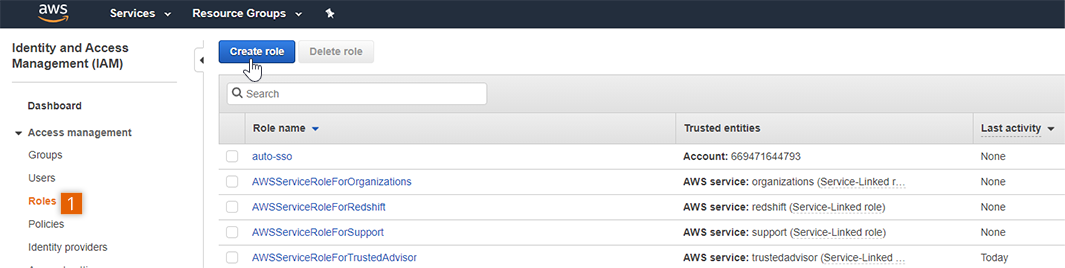

  1. Sign in to the IAM console at https://console.aws.amazon.com/iam/. In the navigation pane, choose Roles and click Create role
  2. Roles

    Roles

  3. On the Create role page, Select "type of trusted entity" as AWS service. Select a service as Ec2 from the list to view its use case, and then choose a "use case" as EC2 and click Next: Permissions.
  4. Create Roles

    Create Roles

  5. On the Attach permissions policypage, select the Policy from the list of AWS managed policy that grants your instances access to the resources. If needed, you can create a new Policy to attach and click Next:Tags.
  6. Permissions Policy

    Permissions Policy

  7. On the IAM tags page, you can add "key-value" pairs that you can add to your role. Tags can include user information, such as an email address, or can be descriptive, such as a job title. Click Next:Review.
  8. Add Tags

    Add Tags

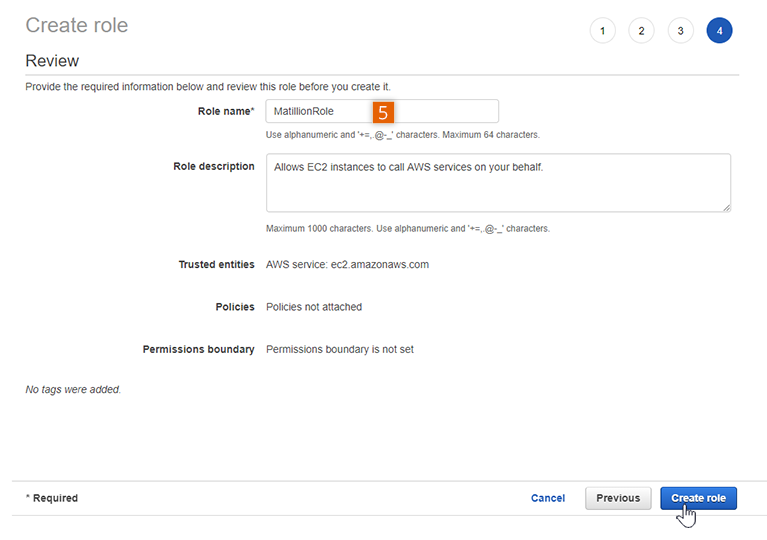

  9. Next, on the Review page, enter a name for the role and choose Create role
  10. Review Role

    Review Role

Alternatively, you can use the AWS CLI to create an IAM role. The following example creates an IAM role with a policy that allows the role to use an Amazon S3 bucket.

To create an IAM role (AWS CLI)

Creating a role from the AWS CLI involves multiple steps. When you use the console to create a role, many of the steps are done for you, but with the AWS CLI you must explicitly perform each step yourself. You must create the role and then assign a permissions policy to the role. Optionally, you can also set the permissions boundary for your role.

  1. Create the trust policy and save it in a text file named ec2-role-trust-policy.json.
    {
      "Version": "2012-10-17",
      "Statement": [
        {
          "Effect": "Allow",
          "Principal": { "Service": "ec2.amazonaws.com"},
          "Action": "sts:AssumeRole"
        }
      ]
    }
  2. Create the MatillionRole role and specify the trust policy that you created using the aws iam create-role command.
  3. aws iam create-role --role-name MatillionRole --assume-role-policy-document file://ec2-role-trust-policy.json
    {
        "Role": {
            "AssumeRolePolicyDocument": {
                "Version": "2012-10-17",
                "Statement": [
                    {
                        "Action": "sts:AssumeRole",
                        "Effect": "Allow",
                        "Principal": {
                            "Service": "ec2.amazonaws.com"
                        }
                    }
                ]
            },
            "RoleId": "AROAIIZKPBKS2LEXAMPLE",
            "CreateDate": "2013-12-12T23:46:37.247Z",
            "RoleName": "MatillionRole",
            "Path": "/",
            "Arn": "arn:aws:iam::123456789012:role/MatillionRole"
        }
    }
  4. Create an access policy and save it in a text file named ec2-role-access-policy.json. For example, this policy grants administrative permissions for Amazon S3 to applications running on the instance.
  5. {
      "Version": "2012-10-17",
      "Statement": [
        {
          "Effect": "Allow",
          "Action": ["s3:*"],
          "Resource": ["*"]
        }
      ]
    }
  6. Attach the access policy to the role using the aws iam put-role-policy command.
  7. aws iam put-role-policy --role-name MatillionRole --policy-name S3-Permissions --policy-document file://ec2-role-access-policy.json
  8. Add custom attributes to the role by attaching tags by using tag-role command. It is an optional field.
  9. Set the permissions boundary for the role using aws iam put-role-permissions-boundary command.
  10. Please Note

    • A permissions boundary controls the maximum permissions that a role can have. Permissions boundaries are an advanced AWS feature.
    • Setting the permission boundary is an optional field.



Attach an IAM Role to a Matillion ETL instance

You can attach an IAM role to an existing EC2 instance from the EC2 console. You can also use the EC2 console to replace an IAM role attached to an existing instance.

To attach an IAM role to an instance that has no role, the instance can be in the stopped or running state.

To attach an IAM role to an instance (IAM console)

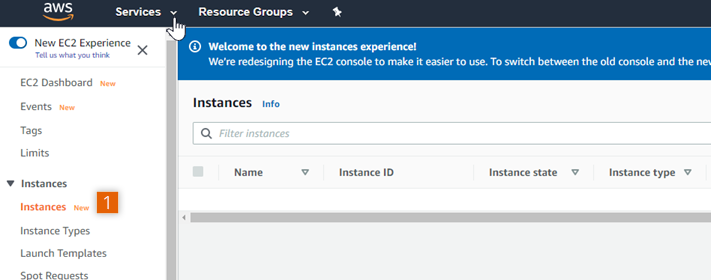

  1. Sign in to the EC2 console at https://console.aws.amazon.com/ec2/. In the navigation pane, choose EC2 Dashboard and click instance.
  2. EC2 Dashboard-Instance

    EC2 Dashboard-Instance

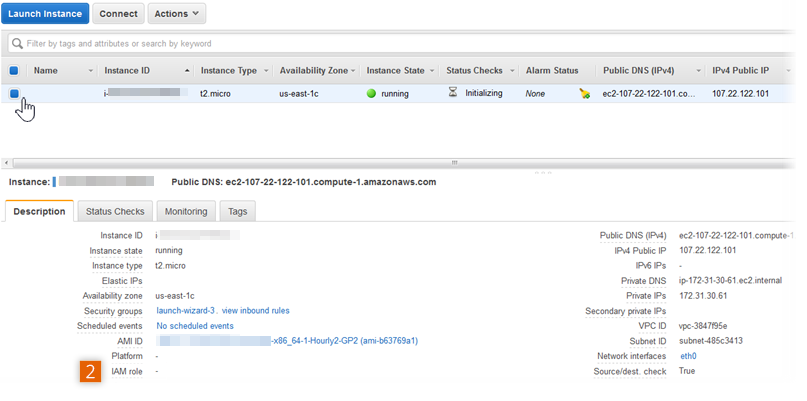

  3. Select the instance to which you want to attach an IAM role. To ensure an IAM role is not already attached, verify that the value of the IAM role on the Description tab of the instance is empty.
  4. Instance Role

    Instance Role

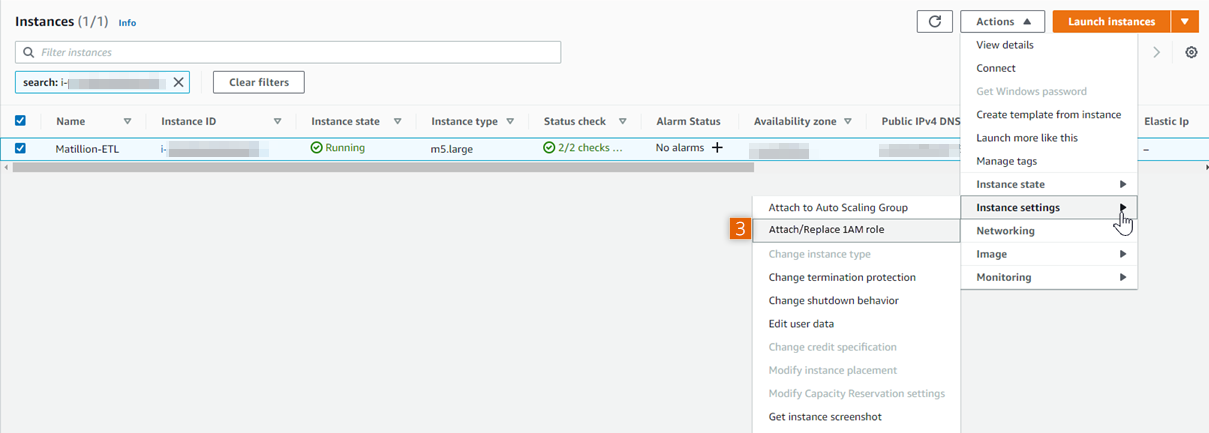

  5. From the Actions menu, choose Instance SettingsAttach/Replace IAM role.
  6. Attach role

    Attach role

  7. On the Attach/Replace IAM role page, choose a role to attach (in this example, I choose MatillionRole) from the drop-down list.
  8. Choose the role from the drop-down and click Apply.
Attach role to an instance

Attach role to an instance

  • Finally, the IAM role was successfully attached to the EC2 instance and, then click close.
  • Role attach successfully

    Role attach successfully

    To attach an IAM role to an instance (AWS CLI)

    1. If required, describe your instances to get the ID of the instance to which to attach the role.
    2. aws ec2 describe-instances
    3. Use the associate-iam-instance-profile command to attach the IAM role to the instance by specifying the instance profile. You can use the Amazon Resource Name (ARN) of the instance profile, or you can use its name.
    4. aws ec2 associate-iam-instance-profile --instance-id i-1234567890abcdef0 --iam-instance-profile Name="MatillionRole"
      		{
          "IamInstanceProfileAssociation": {
              "InstanceId": "i-1234567890abcdef0",
              "State": "associating",
              "AssociationId": "iip-assoc-0dbd8529a48294120",
              "IamInstanceProfile": {
                  "Id": "AIPAJLNLDX3AMYZNWYYAY",
                  "Arn": "arn:aws:iam::123456789012:instance-profile/MatillionRole"
              }
          }
      }
