List of AWS Launch Templates for Matillion ETL for Redshift

List of Redshift Launch Templates

Overview

A list of the different available templates (see AWS CloudFormation) is given below. There are 2 main types of template - one for those who have preexisting resources (such as Redshift clusters) and one for those who do not (New Resources).

For a step-by-step guide on how to launch a Matillion ETL instance using these templates, please refer to the Template Launch documentation. To migrate an existing instance to a different server (for example, migrating from a single node to a highly-available cluster) considering using the Server Migration Tool.

If you experience problems with launching via templates, please contact support, citing the template you wish to use, for full assistance.

Note: CloudFormation Clustered templates require an external domain that is, by definition, in another VPC (or on-premises) and so will likely require VPC Peering to work.

New Resources

Templates for those who need the entire lot, brand new setup. Redshift Cluster included.

Name	Description	Resources Created	Download Template
PoC - New Resources	Isolated batteries-included template for a single t2.medium Matillion instance.	EC2 Instance running Matillion IAM Role (attached to EC2 Instance) VPC and Public/Private Subnets Redshift Cluster	DOWNLOAD
Single Node Enterprise - New Resources	Isolated batteries-included template for a single m4.large\|m4.xlarge Matillion instance.	EC2 Instance running Matillion IAM Role (attached to EC2 Instance) Postgres RDS Instance with Multi-AZ Failover Cloudwatch-based logging VPC and Public/Private Subnets Redshift Cluster	DOWNLOAD
Clustered Enterprise - New Resources	Isolated batteries-included template for a single m4.large\|m4.xlarge Matillion instance. The following resources must already exist in your account, and will be referenced: LDAP or Active Directory Based Directory Service	2xEC2 Instance running Matillion in a Cluster IAM Role (attached to EC2 Instance) Postgres RDS Instance with Multi-AZ Failover ALB (Application Load Balancer) Cloudwatch-based logging VPC and Public/Private Subnets Redshift Cluster	DOWNLOAD

Existing Resources

Templates for those who have a Redshift Cluster already and want to launch a Matillion ETL instance to use with it.

Name	Description	Stats	Download Template
PoC - Existing Resources	Existing AWS Account template for a single t2.medium Matillion instance. The following resources must already exist in your account, and will be referenced: VPC and Public/Private Subnets Redshift Cluster	EC2 Instance running Matillion IAM Role (attached to EC2 Instance)	DOWNLOAD
Single Node Enterprise - Existing Resources	Isolated batteries-included template for a single m4.large\|m4.xlarge Matillion instance. The following resources must already exist in your account, and will be referenced: VPC and Public/Private Subnets Redshift Cluster	EC2 Instance running Matillion IAM Role (attached to EC2 Instance) Postgres RDS Instance with Multi-AZ Failover Cloudwatch-based logging	DOWNLOAD
Clustered Enterprise - Existing Resources	Isolated batteries-included template for a single m4.large\|m4.xlarge Matillion instance. The following resources must already exist in your account, and will be referenced: VPC and Public/Private Subnets Redshift Cluster LDAP or Active Directory Based Directory Service	2xEC2 Instance running Matillion in a Cluster IAM Role (attached to EC2 Instance) Postgres RDS Instance with Multi-AZ Failover ALB (Application Load Balancer) Cloudwatch-based logging	DOWNLOAD

Visualising Templates

Below we have diagrammed the resources represented by the different templates given in this article.

POC

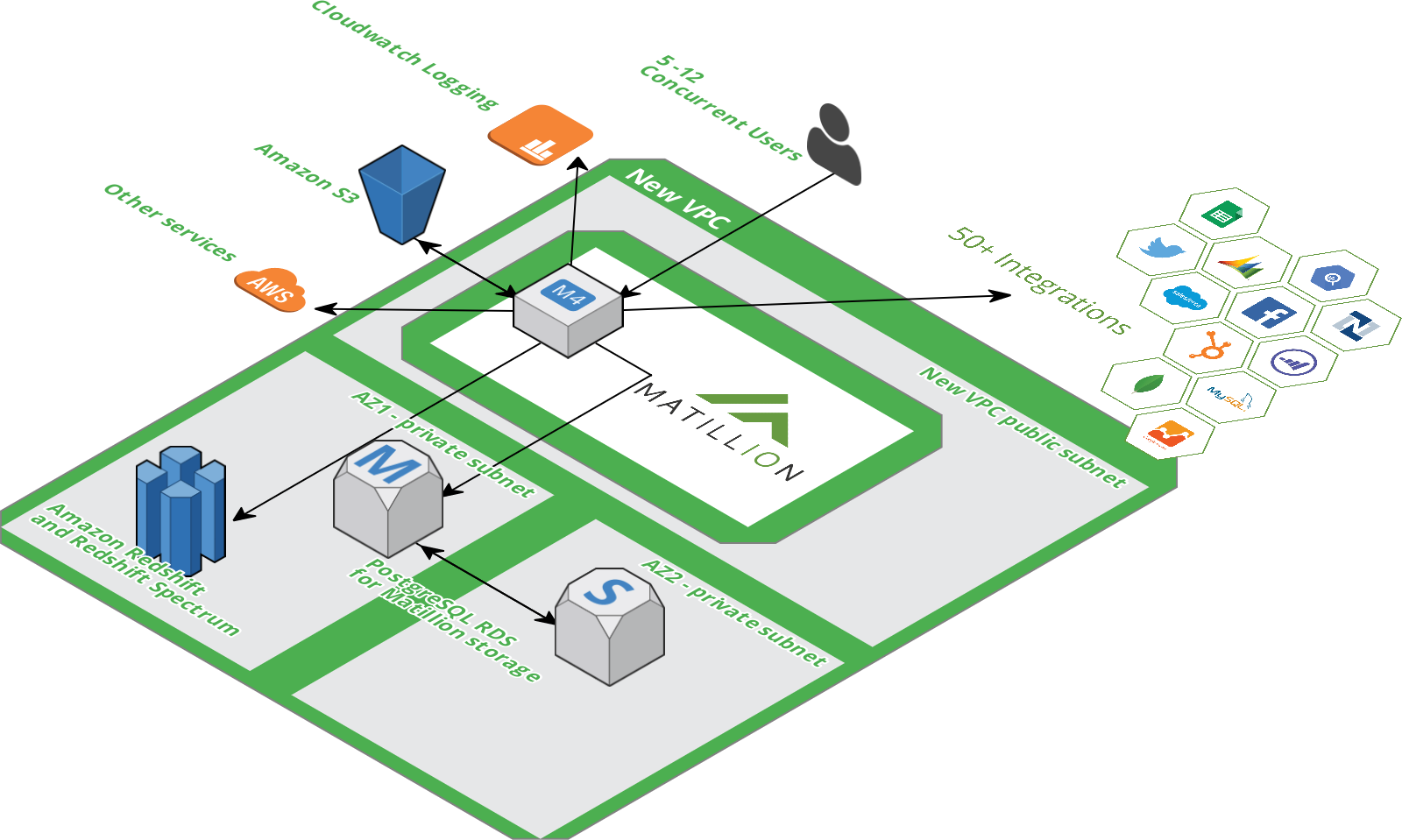

Single Node Enterprise

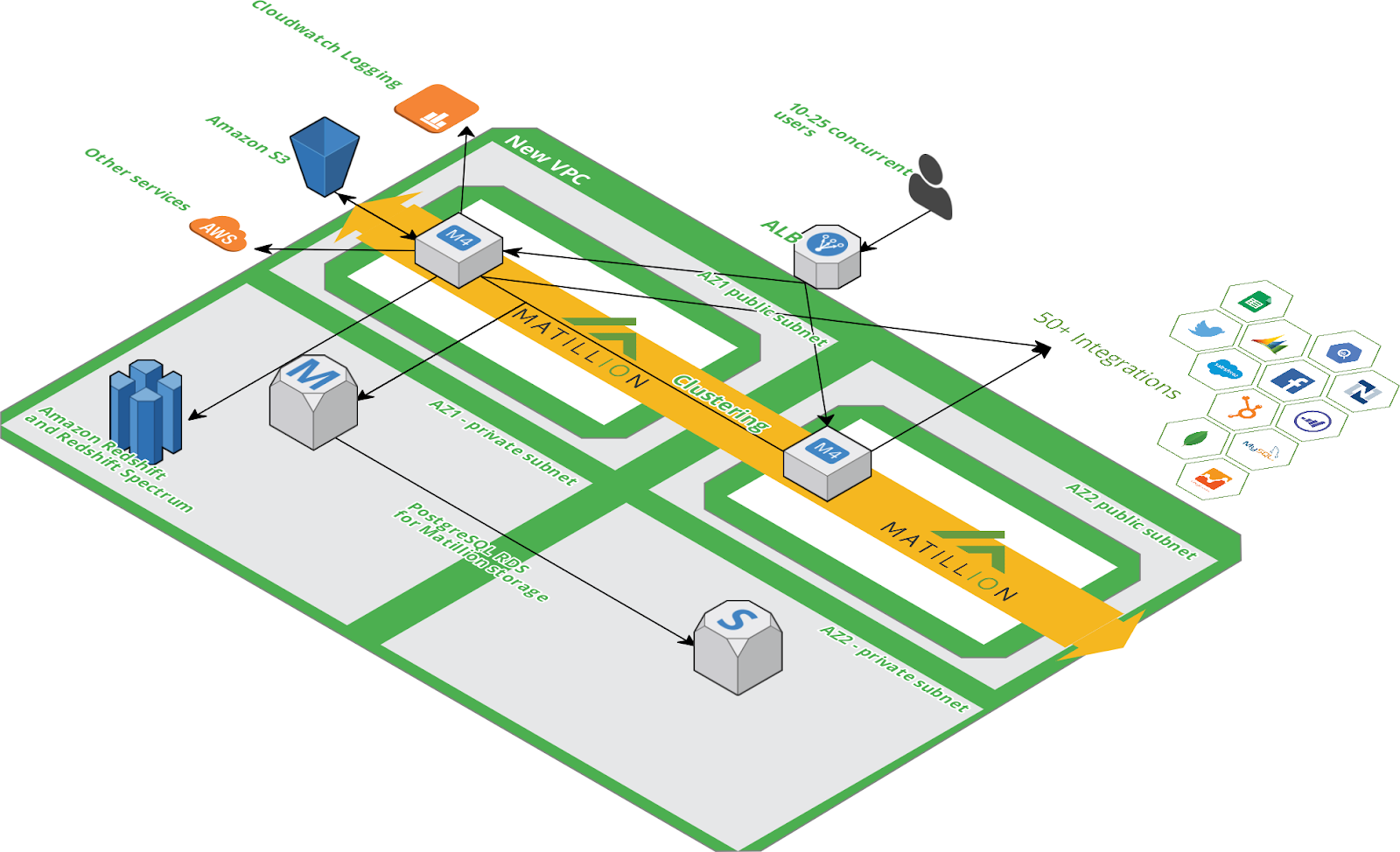

Clustered Enterprise
