Window Calculation Component
Window Calculation Component
Allows the user to set up a calculation using a window function. Window functions allow users to query tables for a partition of a data set, termed a 'window'.
Properties
Property  Setting  Description

Name  Text  The descriptive name for the component.
Include Input Columns  Yes/No  Defines whether the component passes all input columns into the output.
Partition Data  List of Columns  Defines how the input data is partitioned in order to perform the window calculation. The calculation is then performed on each partition.
Ordering within partitions  Input Column  The input column name for sorting within the partitioned data. Note: you can drag to reorder.
Ordering  The order of the sorting: Ascending (Asc) or Descending (Desc). You can also choose how to sort any null values with the Nulls First and Nulls Last parameters.

Lower Bound  Multi Select List  unbounded preceding  (default) indicates that the window starts at the first row of the partition current row  indicates the window starts at the current row. offset preceding  indicates that the window starts a number of rows (offset) before the current row.
Upper Bound  Multi Select List  unbounded following  indicates that the window ends at the last row of the partition. current row  indicates the window starts at the current row. offset following  indicates that the window ends a number of rows (offset) after the current row.
Functions  Window Function  A window function to apply (see supported functions above).
Input Column  The input column that the window function will be applied to.
Output Column  The name of the output column that the window function will create.
Strategy
Generates a select statement with a window function in line using the OVER keyword. More details...
Generates a select statement with a window function in line using the OVER keyword. More details...
Generates a select statement with a window function in line using the OVER keyword. More details...
Supported Functions
Window functions provide application developers the ability to create analytic business queries more efficiently. Window functions operate on a partition or "window" of a data set, and return a value for every row in that window.
Matillion ETL currently supports the following window functions:
 Average  returns the average (arithmetic mean) of the input column values in the window. More...
 Count  returns a count of the nonnull values for the specified field. More...
 First Value  Given an ordered set of rows, returns the specified column value with respect to the first row in the window frame. More...
 Last Value  Given an ordered set of rows, returns the specified column value with respect to the first row in the window frame. More...
 Minimum  returns the minimum of the input expression values. The MIN function works with numeric values and ignores NULL values. More...
 Maximum  returns the maximum of the input expression values. The MAX function works with numeric values and ignores NULL values. More...
 Sum  returns the sum of the input column in the window. More...
 Sample Variance  return the sample variance of a set of numeric columns. More...
 Population Variance  return the sample variance of a set of numeric columns. More...
 Standard Deviation return the standard deviation of a set of numeric values. More...
 Population Standard Deviation  return the population standard deviation of a set of numeric values. More...
 Median  calculate the median value for the range of values in a window or partition. Null values in the range are ignored. More...
 Median  calculate the median value for the range of values in a window or partition. Null values in the range are ignored. More...
The following functions are supported by the Rank Component.
 Rank  determines the rank of a value in a group of values.
 Dense Rank  determines the rank of a value in a group of values. The Dense Rank function differs from rank in one respect: If two or more rows tie, there is no gap in the sequence of ranked values.
 Cumulative Distribution  determines the cumulative distribution of a value within a window or partition.
 Percent Rank  Calculates the percent rank of a given row.
 Row Number  Determines the ordinal number of the current row within a group of rows, counting from 1.
Example
This example uses the flight data to add a new column with the cumulative flight time (airtime).
Note: The filter just shows one plane for clarity however this can be removed and the function will remain accurate for the whole dataset.

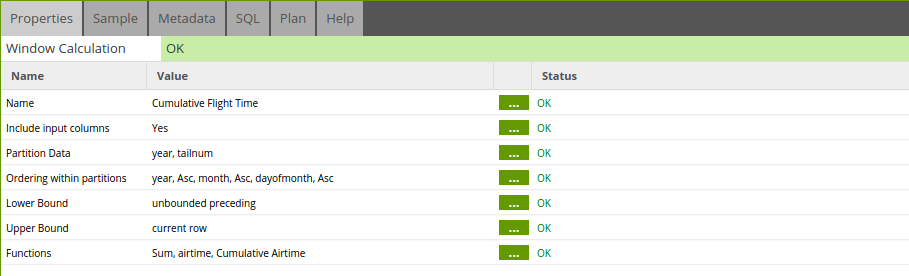

The component properties are set up as below. The data is partitioned by year then tailnum and ordered the same way (the ordering doesn't really add anything in this scenario).
The lower bound of unbounded preceding and the upper bound of current row define a window that starts from the current year and tailnum up to the current row hence a cumulation for a particular plane in a particular year.

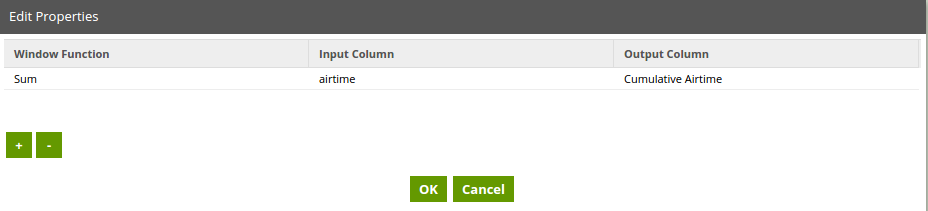

The function used is a sum that acts on the airtime input column and outputs a new column Cumulative Airtime.

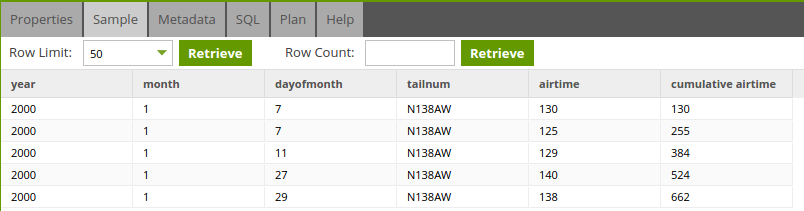

The Sample data shows the new column added.
